3D Printing with Fused Deposition Modeling (FDM)
DM "Fused Deposition Modeling" is the technology which use of high temperature PLA, ABS and other materials melted into a liquid state, after extrusion through the print head curing, and finally arranged in three-dimensional space solid object. FDM 3D printer equipment has low price and use cost and is suitable for educational applications, model making of automobiles, machinery, and other manufacturing industries.
3D printer with FDM for elementary and secondary sducation

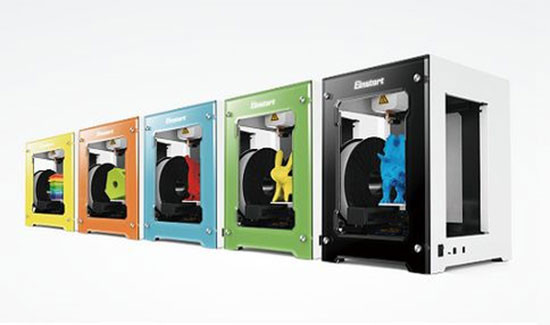

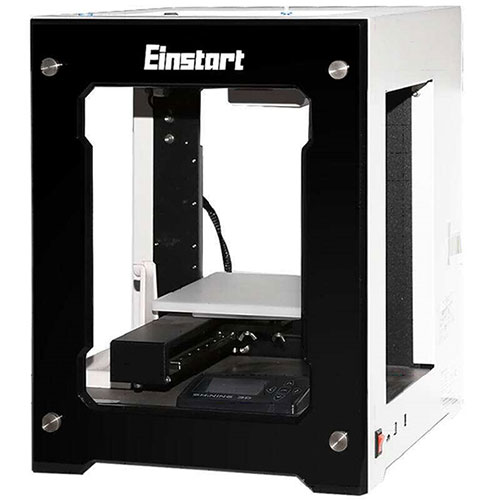

Ein start-S 3D printer
Features
1、 It is easy to operate and can one-click printing.
2、 It uses a full metal frame for durability.
|
product model |
EinStart-S |
|
printing precision(mm) |
0.15-0.35 |
|
the size of model construction(mm) |
160*160*160 |
|
number of nozzles |
Single |
|
Internal lighting (atmosphere lamp) |
YES |
|
model material |
PLAMaterial Science |
|
printing software |
3D START 2.0（Graphical interface） |
|
stop printing and change materials |
YES |
|
Display mode |
OLED screen touch control built in |
|
printing speed（mm/s） |
30-150 |
|
Print storehouse |
To open up |
|
dimensions (mm) |
300*320*390 |
FDM 3D Printer for Education Competition

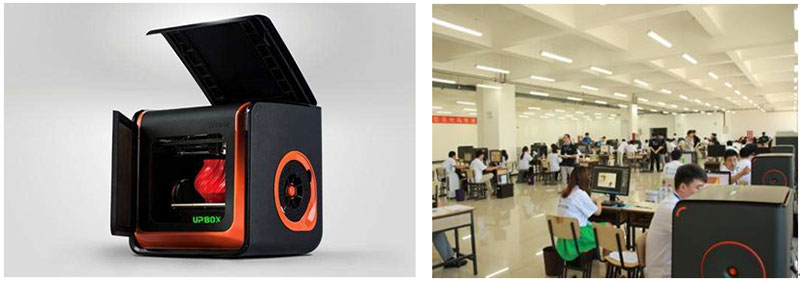

UP BOX+3D printer and contest applications
Features
1、Higher stability . Higher print accuracy.
2、It has new design of nozzle, adds material testing and can continue when the power was cut off.
Specification parameter
|
product model |
UP BOX+ |
|
printing precision(mm) |
0.1 |
|
the size of model construction(mm) |
255×205 ×205 |
|
number of nozzles |
Single nozzle, completely designed single head, modular easy to replace. |
|
Internal lighting (atmosphere lamp) |
YES |
|
model material |
PLA、ABSMaterial Science |
|
printing software |
UP Studio |
|
stop printing and change materials |
YES |
|
printing speed（mm/s） |
30-150 |
|
dimensions (mm) |
485 x 520 x 495 |
|
other functions |
It can continue printing in case of outage, has air filtration system and LED breathing light. |
Industrial level FDM 3D printer parameters

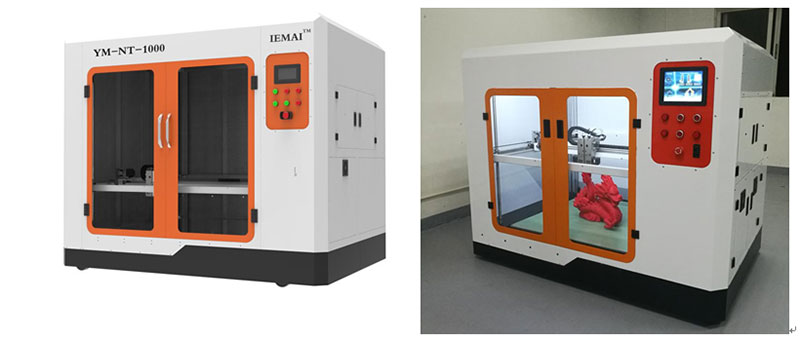

YM-NT-1000 Industrial 3D Printer
Features
1、High stability, large size printing
2、It has two nozzles so the support and model print separately.
Specification parameter
|
product model |
YM-NT-1000 |
|
printing precision(mm) |
0.1-0.25mm |
|
the size of model construction(mm) |
1000*1000*1000 |
|
number of nozzles |
double, quick disassembly and installation of modular |
|
Internal lighting (atmosphere lamp) |
YES |
|
model material |
1.75mm line diameter PLA, WOOD, Carbon, ABS, PC, PETG, TPU, PVA, etc. |
|
printing software |
STL、OBJ、3MF |
|
stop printing and change materials |
YES |
|
printing speed（mm/s） |
0-120 |
|
dimensions (mm) |
1890*1450*1600 |
|
other functions |
It can continue printing in case of outage, test without materials, use WIFI to control(using APP and slicing software), and has quick-release dual print head. |
